Wireless

LED Up-Lights

At no additional cost, our Uplights are available for rent in a black or white finish.  Please specify when booking.

Up-Light Cube LED-RGBAWUV

Rental price

$48.00 each or $450 for a travel case of ten.

Use the dynamic uplight to color wash walls, ceiling,  stage, banners, graphics and more...



Included in the rental:

  • Remote Control

  • Modern Cube shape

  • Travel Bag or Flight Case

  • 8-hour battery charge

  • 24-48 hour check out period

  • Delivery and installation costs are additional and depend on the quantity of equipment and distance to the event location.

MORE INFO...

What is an Up-Light?

An Up-Light is a light placed or designed to throw illumination upward on a wall or stage.

The housing is made of a par-can or cube shape housing.



How do I achieve the exact color mix?

First, know that not all up lights are created equal.

It all depends on the fixture.



RGB, Red, Green, Blue color mixing = Achieves all 8 colors (no yellow, or white)

RGBA, Red Blue, Green, +Amber = Achieves up to 24 colors

RGBAW = Red, Green, Blue, Amber, White = Achieves up to 36+ colors.





How are they powered and controlled?

They are lithium battery operated fixtures. Each uplight will run eight hours on a full charge.

Controlling them is easy via the remote control or LCD color screen.

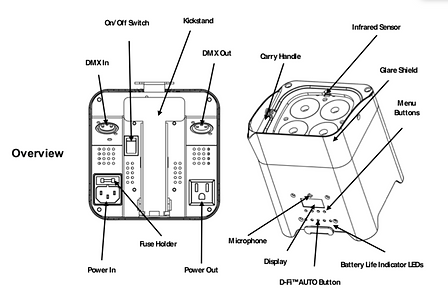

Technical Specification

  • DMX Channels: 4, 6 or 10

  • DMX Connectors: 3-pin XLR

  • Light Source: 4 LEDs (quad-color RGBA) 5 W (2 A), 50,000 hours life expectancy

  • Strobe Rate: 0 to 17 Hz

  • PWM Frequency: 1,200 Hz

  • Beam Angle: 15°

  • Field Angle: 29°

  • Maximum Run Time: (all on): up to 8 hours

  • (single color): 20 hours

  • Recharge Time: 6 hours

  • Operating Frequency: 2.412 to 2.484 GHz

  • Illuminance: 2,300 lux @ 2 m

  • Power Linking: 15 units @ 120 V; 28 units @ 230 V

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current: 35 W, 0.5 A @ 120 V, 60 Hz

  • 33 W, 0.3 A @ 230 V, 50 Hz

  • Weight: 6.2 lb (2.8 kg)

  • Size: 5.4 x 5.7 x 7.2 in (138 x 145 x 184 mm)

  • Approvals: CE, FC

  • For interior use only.
